High Speed Paper Cutter Machine is used to cut the printing paper of various kinds, paper products, etc.

HIGH SPEED PAPER CUTTING MACHINE

High Speed Paper Cutter Machine is used to cut the printing paper of various kinds, paper products, etc.
Applicable Industries: Manufacturing Plant, Printing Shops
Factory: Made in China
Wondly Machinery  is the China professional manufacturer of High Speed Paper Cutter Machine

PAPER CUTTING MACHINE


Our company the country passed the ISO9001:2000 international quality control system authentication in 2004, in 2007 through the CE authentication.

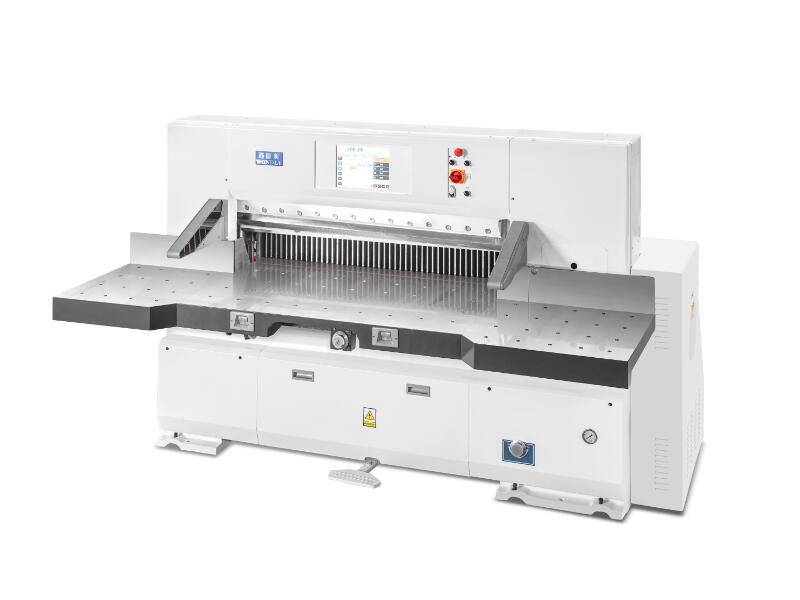

PAPER CUTTER MACHINE MODEL QZYK1370DF


1)work platform equipped with inflatable structures to facilitate the pushing of paper and feed.

2) with a highly reliable protection of the six groups of grating, ensuring operator safety.


HIGH SPEED PAPER CUTTER MACHINE PRODUCT DESCRIPTION


PAPER CUTTING MACHINE

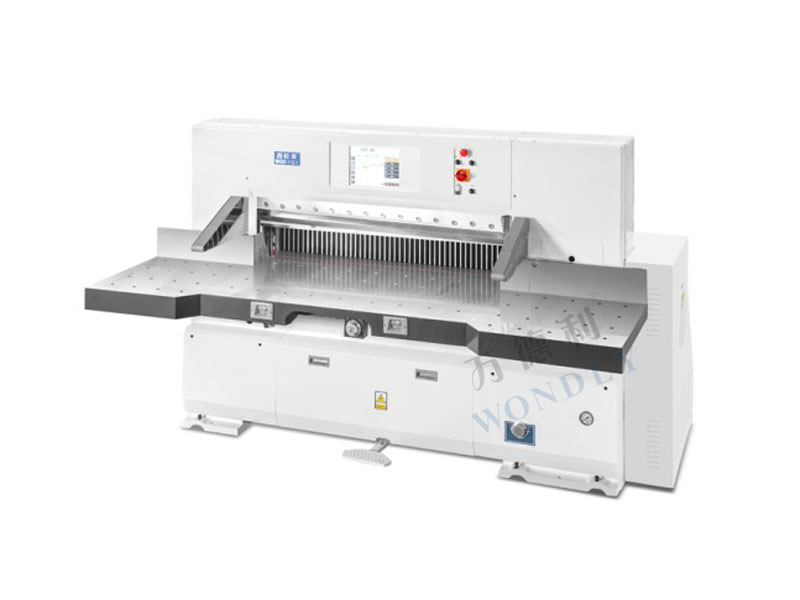

QZYK1150DW Hydraulic Program control Paper Cutting Machine


1) Paper Cutting Machine full machine control part of the main low-voltage electrical appliances imported Schneider.
2) Paper Cutting Machine Hydraulic some of the pressure adjustable.

Model: QZYK1150DW
Brand: WONDLY
Factory location: Made in China

MAIN PERFORMANCE OF HYDRAULIC PROGRAM CONTROL PAPER CUTTING MACHINE

HYDRAULIC PROGRAM CONTROL PAPER CUTTING MACHINE PRODUCT DESCRIPTION


Hydraulic Program control Paper Cutting Machine Castings using advanced resin sand molding , clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction.


The Taiwan AU15 -inch color LCD touch screen display

Paper Cutting Machine computer interface using user-friendly design, allows the operator to easily operate

Servois used as paper feeding systemand locateon presicion up to 0.01mm

full machine control part of the main low-voltage electrical appliances imported Schneider.

Hydraulic some of the pressure adjustable.

The frame structure of the international popular split, effectively increasing the machine cutting precision, user-friendly maintenance.

chrome work platform, saving the users maintenance time, extend its life.

work platform equipped with inflatable structures to facilitate the pushing of paper and feed.

with a highly reliable protection of the six groups of grating, ensuring operator safety.

hook-like structure mounted knife, make easy work tool changes.

high-precision, high rigidity box-type paper sector, the wiring of the double-rail to ensure that the paper feed precision.

Worm gear drive mechanism, hydraulic clutch, mechanical brake



Technical Data of Paper Cutting Machine

Cuttign   width cm 115
Cutting height cm 16.5
Main motor power kw 4
Weight kg 4000
width with sideway  cm 290
Without side table cm 250
Lehgth m 249
Table height  cm 90
Cutting speed times 45
Overall dimensions cm 275*140*191
Voltage(three-phase) V 361-399
Wire size mm2 2.5


Safety Precautions of Paper Cutting Machine

Operator shall wear working suit and head cap to avoid harms due to involving of part of clothing or hanging things into moving parts. The machine can be operated only by one operator.
The machine is deigned according to pertinent standards to cutter and relevant safety standards. Safety signs are stuck onto parts at a risk to people. It is necessary to utilize and operate the machine according to design requirements and stipulations in instruction manual in order to avoid from any personal harms or machine damages and other materials.


HIGH SPEED AUTOMATIC PAPER CUTTING MACHINE VIDEO


Use a feeler to check the clearance between the friction and the driving wheel and tighten the locking screw if the clearance reaches the desirable value. When the friction dick is found any rivet exposed, please replace by a new one and re-adjust the clearance. The friction disc is a kind of dry disc, so it is important to keep it clean otherwise it will cause brake skidding and affect seriously the cutting force.
